Oversized Industrial Sectional Door Supplier: 450N/m² Wind Load Solutions for Heavy Manufacturing
Designing exterior access points for aerospace hangars, heavy equipment manufacturing plants, or large-scale logistics hubs presents severe structural challenges. Oversized door openings (e.g., 15m x 8.5m) act as massive sails, highly susceptible to structural deflection and track derailment under extreme wind loads. Standard commercial doors fail under these dynamic pressures. This engineering guide details how ABX, a certified heavy-duty door manufacturer, utilizes custom wind-resistant ribs and 50mm high-density PU panels to deliver CE-certified oversized doors capable of withstanding Category 12 typhoons (450N/m²), ensuring facility security and compliance with ANSI/DASMA 108.
Structural Dynamics of Oversized Openings
When an industrial door exceeds 30 square meters, the wind load calculations change drastically. Positive and negative wind pressures exert immense dynamic force on the center of the panels. Without engineered reinforcement, the panels will experience severe structural deflection (bending), which pulls the rollers out of the galvanized steel tracks, leading to catastrophic blow-outs and facility exposure.
ABX engineers address this by establishing a robust baseline: utilizing 50mm thick double-skin steel panels injected with 48kg/m³ high-density PU foam. While this provides excellent thermal transmittance (K≤0.8W/m³.K) and basic rigidity, spans up to 15 meters require precise mechanical reinforcement to meet industrial building codes.
Engineered Wind Ribs and Deflection Control
To achieve a verified wind resistance of 450N/m², ABX integrates custom heavy-duty galvanized steel wind ribs horizontally across the interior of the panels. Based on the facility’s specific geographical wind load data, our engineering team specifies the exact height of the ribs required: 6cm, 7cm, 9.5cm, or 12cm.
This strategic reinforcement minimizes panel deflection, ensuring that the heavy-duty rollers remain securely engaged within the tracks even during severe weather events. Despite the added weight of the ribs, the door is perfectly counterbalanced by shot-peened, high-cycle torsion springs (rated for 25,000+ cycles) and driven smoothly by a 380V industrial servo motor.
Technical Parameter Reference: Oversized Doors
| Engineering Specification | ABX Heavy-Duty Standard | Structural Benefit for Builders |
|---|---|---|
| Maximum Dimensions | Width: 15m x Height: 8.5m | Provides unhindered access for heavy machinery and aerospace components. |
| Dynamic Wind Load | Up to 450N/m² (Category 12 Typhoon) | Complies with ANSI/DASMA 108; prevents structural blow-outs. |
| Deflection Control | Custom Wind Ribs (6cm to 12cm) | Maintains panel rigidity on spans exceeding 30 square meters. |
| Safety Mechanisms | Anti-drop devices (Cable & Spring) | Prevents free-fall in the event of mechanical failure; ISO45001 compliant. |
Heavy-Duty Hardware and ISO45001 Safety

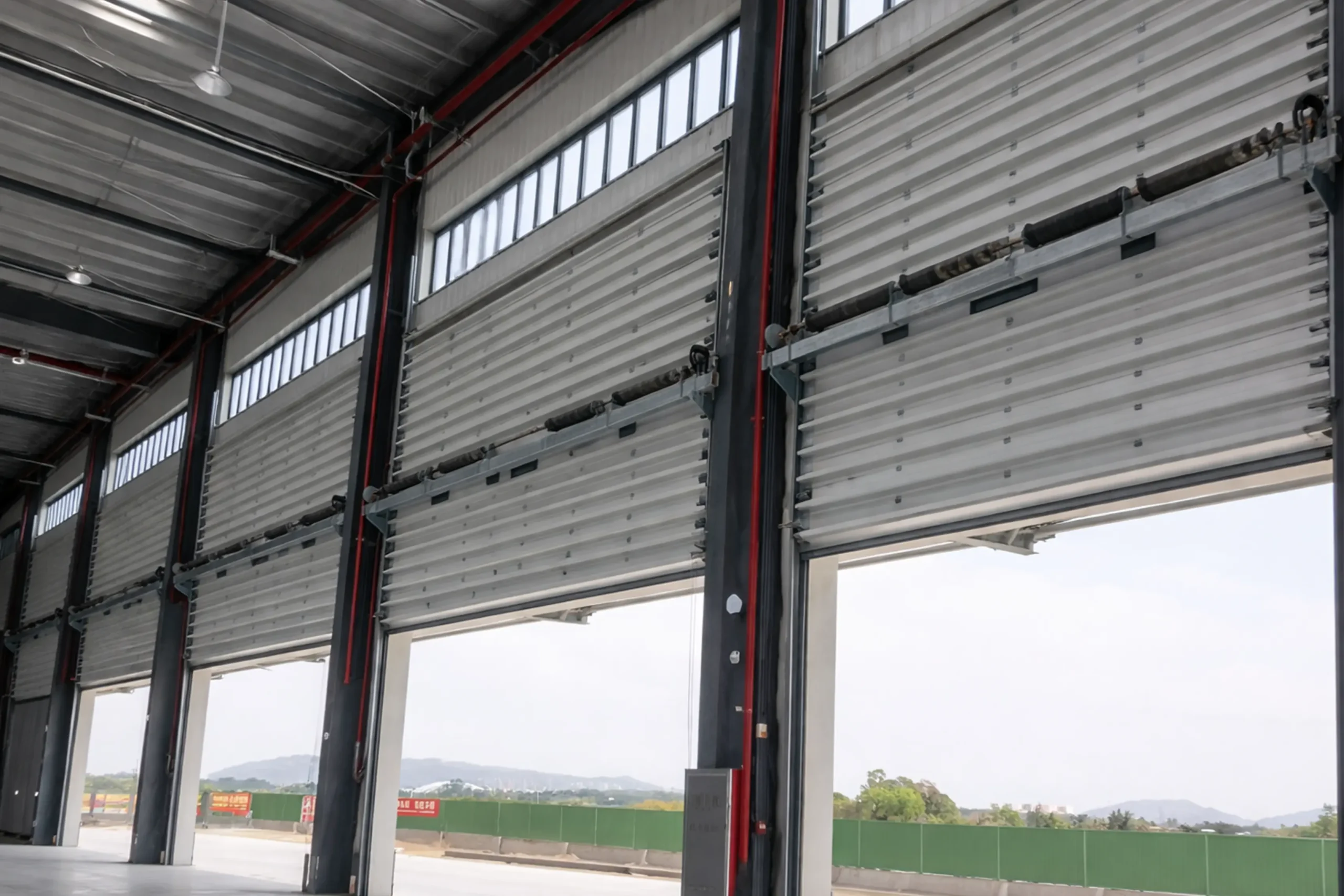

Operating a door of this mass requires uncompromising safety protocols. ABX oversized sectional doors are equipped with industrial-grade hinges and reinforced track brackets. Standard safety features include anti-drop devices that instantly lock the door in place should a lifting cable or torsion spring fail. Furthermore, the panels feature our patented thermal-break anti-pinch design (ZL201220623912.0), ensuring that personnel are protected during operation, aligning with stringent ISO45001 occupational health standards.
Secure Your Large-Scale Facility
Do not compromise your heavy manufacturing plant with under-engineered access solutions. Contact the ABX engineering team today. Submit your oversized door dimensions and local wind load data, and we will provide a comprehensive structural calculation report, detailed CAD installation drawings, and a direct wholesale project quote.
