High-Lift Full-View Sectional Doors for Automotive Showrooms
Engineered for modern 4S dealerships and service centers. Combining custom high-lift track systems for car hoists, 6063-T5 aluminum frames, and smart IoT integration. Source directly from a 15-year CE-certified factory.
Trusted by Fortune 500 Companies & Global Logistics Giants
Engineered for Automotive Excellence and Maximum Clearance
Custom High-Lift Track Systems
Standard overhead doors waste valuable ceiling space. Our high-lift garage doors for auto shops are custom-engineered to guide the door vertically up the wall before running horizontally. This provides unobstructed ceiling clearance, essential for operating vehicle hoists and lifts in professional service bays.
Superior Thermal Envelope
Massive glass showrooms can lead to extreme energy loss. We utilize premium 6063-T5 extruded aluminum frames paired with argon-filled insulated glazing and EPDM co-extruded seals. This creates a robust thermal barrier, keeping your showroom climate-controlled and reducing HVAC costs.
High-Cycle Hardware for Heavy Traffic
Technical Specifications at a Glance
Maximum Dimensions: | 15,000mm (W) x 8,500mm (H) |
Frame Material: | 6063-T5 Extruded Aluminum Alloy |
Glazing Options: | Tempered Safety Glass / Polycarbonate / Insulated Glass |
Wind Load Resistance: | Up to 700N/m² (Category 12 Typhoon) |
Torsion Spring Lifecycle: | 30,000+ Cycles (Shot-blasted 55CrSi or 60Si2Mn) |
Track Configurations: | High-Lift, Vertical Lift, or Standard Overhead (Customizable). |
Certifications: | CE, EAC, ISO9001, ISO14001, ISO45001 |
Versatile Solutions for the Automotive Industry
Capture long-tail search traffic with targeted solutions for every department of your dealership.

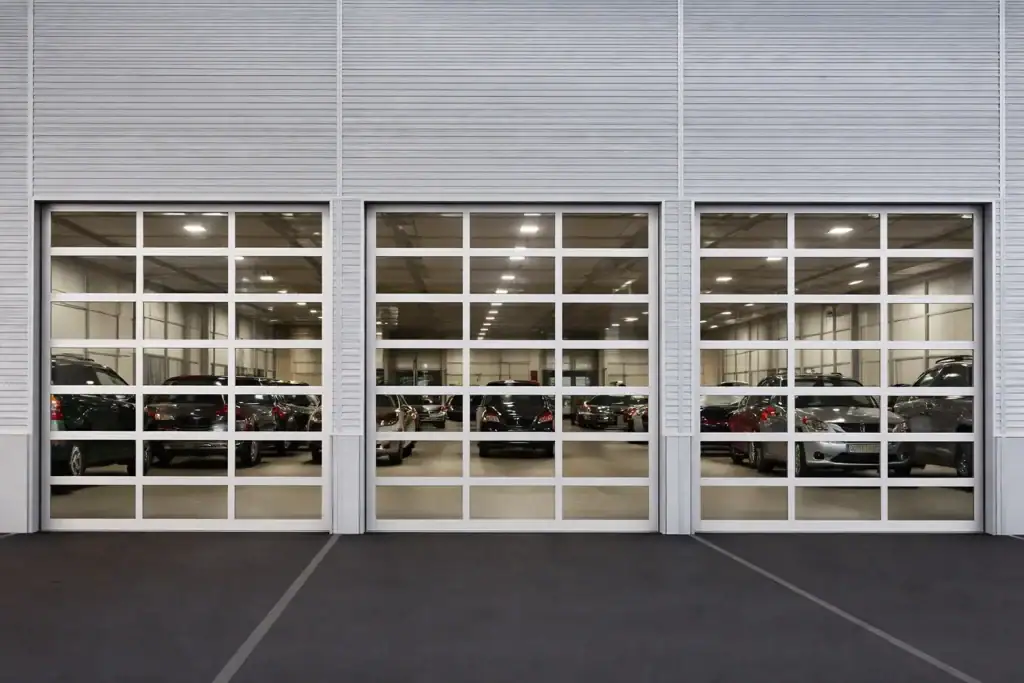

Luxury Car Showrooms
Transform your building facade into a 24/7 visual marketing tool. Our full-view aluminum doors for 4S shops utilize large-span tempered glass to eliminate visual barriers, allowing potential customers to view your latest models even after business hours.

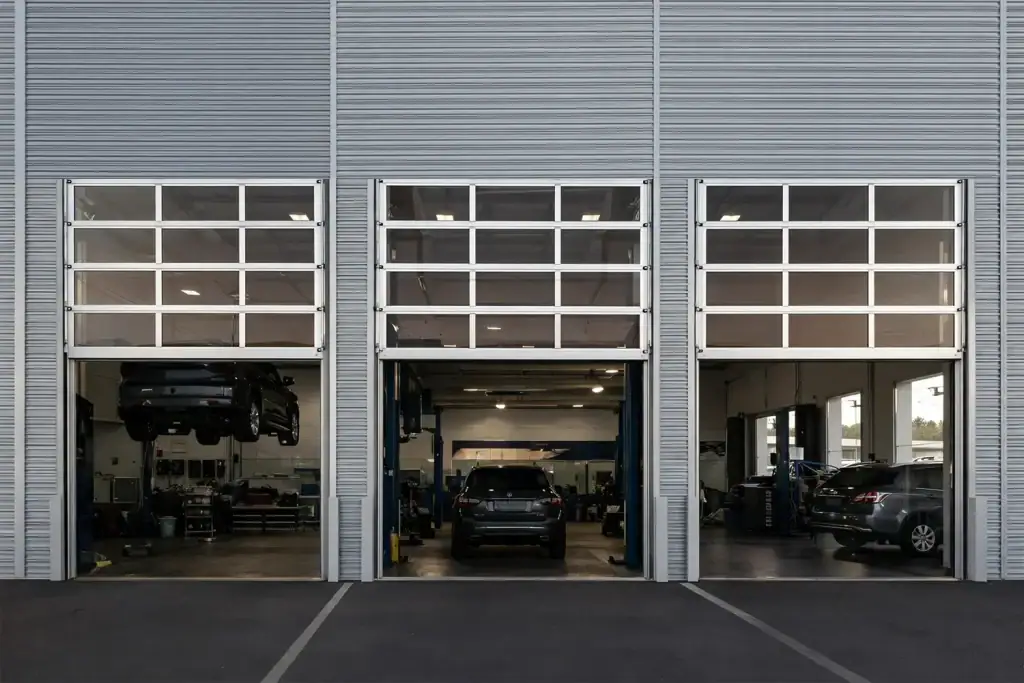

Service & Maintenance Bays
Maximize your operational efficiency. The combination of high-lift tracks and high-cycle torsion springs makes these doors perfect for busy service bays. Technicians enjoy abundant natural light, reducing the need for artificial lighting and creating a safer work environment.

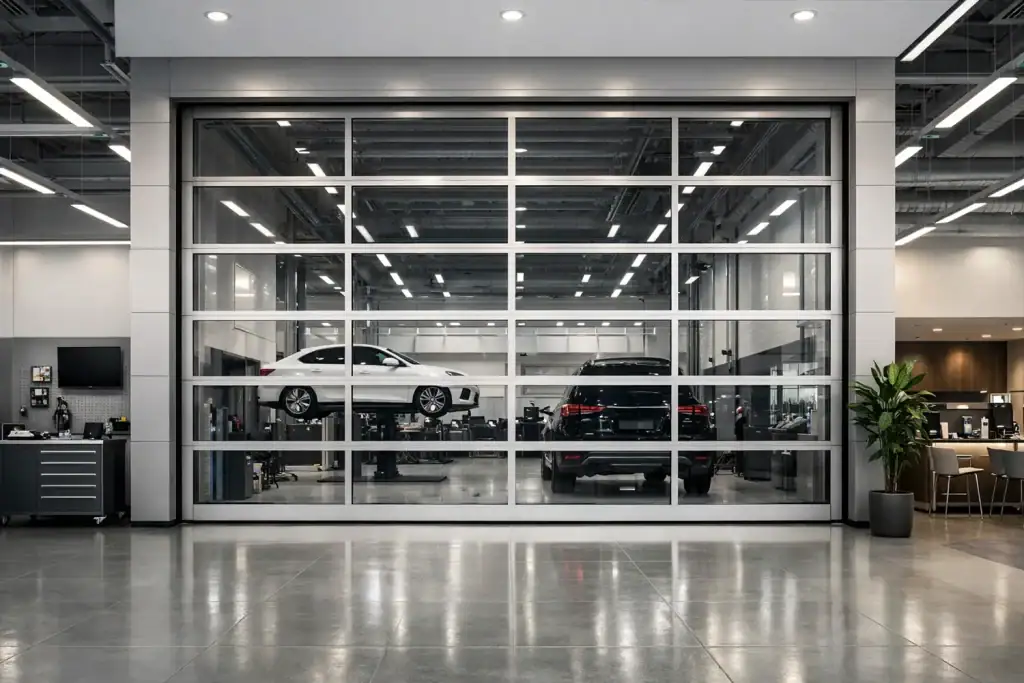

Auto Detailing & Wash Centers
Built to withstand harsh, humid environments. The naturally corrosion-resistant 6063-T5 aluminum frames and watertight EPDM sealing systems make our commercial glass sectional doors ideal for car wash transparent doors and detailing studios.
Customization Options
As a source factory, ABX offers extensive customization to match your architectural style and functional needs.
Integrated Wicket Doors
Add a pedestrian pass door (with a low threshold) for quick personnel access. This allows sales staff and mechanics to move freely between the showroom and the exterior without operating the massive main door, saving energy and reducing hardware wear.
Exact RAL Color Matching
Global automotive brands have strict visual identity guidelines. Beyond standard clear anodized finishes, our factory can powder-coat the aluminum frames in any specific RAL color to perfectly match your dealership’s corporate branding.
Specialized Glazing Finishes
Choose clear glass for showrooms, frosted/tinted glass for privacy in sensitive repair areas, or mirrored finishes. We provide the exact balance of transparency, UV protection, and privacy your commercial space demands.
Certified for Global Compliance & Safety
As a primary drafter of China’s National Standards for Industrial Doors, ABX maintains rigorous quality control. Our sectional doors are fully certified for import and installation in European and Eurasian markets.
CE
EAC
ISO 9001
ISO14001
Smart IoT & Automated Facility Integration
Step into the era of automated facility management. ABX high-lift sectional doors are powered by expert-grade servo systems and an intelligent IoT centralized control box.
When a test-drive vehicle approaches, integrated radar or geomagnetic sensors trigger the door to open seamlessly. The IoT system supports integration with your building’s DCS/PLC network, enabling remote fault diagnosis, real-time cycle counting, and 100% unmanned automated access.
You May Also Need
Logistics & Warehouse Sectional Doors
Engineered with 40-80mm PU insulation (K≤0.8W/m³.K) for high-volume distribution centers. Guaranteed for 30,000+ cycles to ensure ultimate thermal control.
Hydraulic Dock Levelers
Proprietary single-cylinder inverted design eliminates oil leaks. Features a double 5-degree arch lip for smooth, safe heavy-duty forklift transitions.
Dock Seals & Inflatable Shelters
Achieve an airtight loading bay. Our 20-second rapid inflatable shelters provide the ultimate thermal envelope, essential for cold chain logistics.
Factory & Workshop Sectional Doors
Reinforced with heavy-duty wind struts to resist Category 12 typhoons (700N/m²). The ultimate security barrier for massive production halls and harsh environments.
Full-View Aluminum Sectional Doors
Premium 6063-T5 aluminum frames with tempered glazing. Maximize 24/7 visual marketing and natural light for modern retail storefronts and commercial spaces.
Explore All ABX Products
Explore our full matrix of CE-certified doors and docking systems. Partner with a 15-year source factory for 100% automated, IoT-integrated facility access.
Get Factory-Direct Pricing for Your Sectional Doors Project
Cut out the middleman. Partner with a trusted OEM/ODM manufacturer for your next facility upgrade. Share your project dimensions below to receive comprehensive CAD drawings, technical specs, and a customized B2B wholesale quote for your sectional doors and docking systems within 24 hours.
Frequently Asked Questions About Automotive Sectional Doors
Q1: Why is a high-lift track necessary for auto repair shops?
A1: Standard tracks curve horizontally just above the door opening, which blocks the ceiling space needed for vehicle hoists. High-lift tracks guide the door vertically up the wall first, keeping the ceiling clear for mechanics to safely lift cars.
Q2: Can these glass doors withstand strong winds in coastal areas?
A2: Yes. Our heavy-duty 6063-T5 aluminum frames are structurally reinforced. When fully customized, they can withstand wind loads up to 700N/m² (equivalent to a Category 12 typhoon), making them highly secure for coastal dealerships.
Q3: Do you offer custom sizes for oversized commercial vehicles?
A3: Absolutely. As a source factory with a 36,000 sqm manufacturing base, we can engineer extra-wide full-view sectional doors up to 15 meters in width and 8.5 meters in height, perfect for RV or commercial truck dealerships.
Q4: How long is the lead time for a bulk dealership project?
A4: Because we operate industry-leading automated continuous production lines, we guarantee stable and fast delivery. Typical lead times for custom B2B bulk orders are 15-20 days.
