Commercial Sectional Door Project Supplier: ISO45001 Compliance and Anti-Pinch Patent Engineering

In the industrial and commercial sectors, occupational safety is a strict legal liability. Specifying heavy-duty access solutions without verified safety mechanisms exposes facility owners to severe workplace accidents, litigation, and non-compliance with ISO45001 standards. This technical briefing deconstructs the engineering behind ABX’s proprietary safety technologies. By analyzing our patented thermal-break anti-pinch design (Patent No. ZL201220623912.0) and mechanical anti-drop systems, we provide B2B project suppliers with the compliance documentation required to mitigate risk, avoid catastrophic equipment failure, and win stringent enterprise tenders.

The Liability of Industrial Door Accidents

Heavy-duty commercial sectional doors weigh hundreds of kilograms and operate under immense mechanical tension. In high-traffic environments, the risk of personnel getting fingers or hands caught between the articulating panels during the closing cycle is a critical hazard. Standard industrial doors often feature simple tongue-and-groove joints that act like a guillotine when the panels pivot on the track radius. For builders and facility managers, deploying such equipment is a direct violation of modern occupational health and safety protocols, opening the door to massive liability claims.

Engineering the Anti-Pinch Joint (Patent ZL201220623912.0)

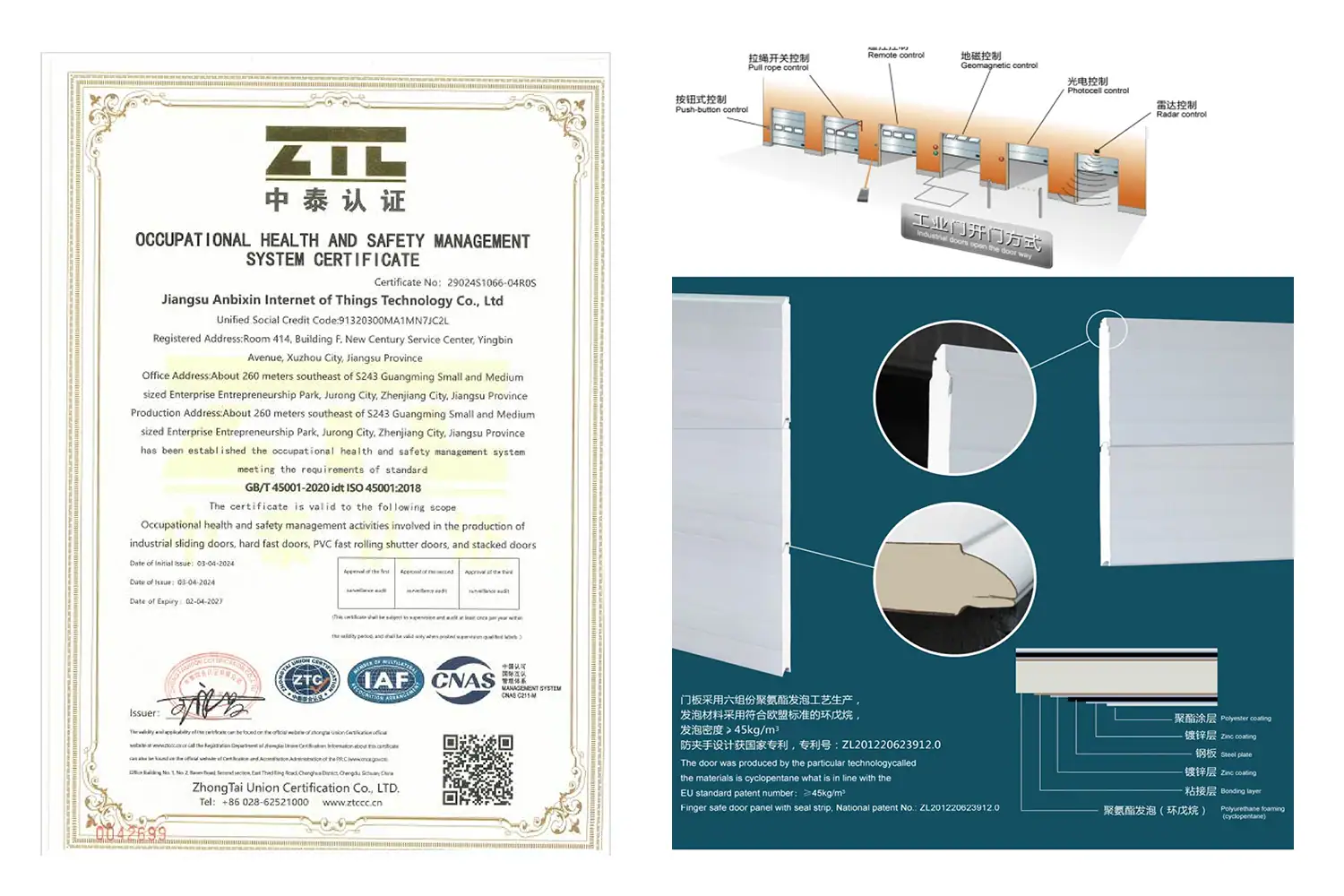

ABX engineers eradicated this hazard by redesigning the panel joint geometry from the ground up. Our 40mm to 80mm PU sandwich panels feature a patented convex-concave articulation profile (Patent No. ZL201220623912.0).

As the door travels through the curved section of the track, the gap between the panels never exceeds 4mm—a dimension physically impossible for a human finger to penetrate. Furthermore, this specific geometric design incorporates a structural thermal break, ensuring that the anti-pinch safety feature does not compromise the door’s K≤0.8W/m³.K thermal transmittance. This dual-function engineering protects both personnel and the facility’s HVAC OpEx.

Comprehensive Mechanical Safety Systems

Pinch resistance is only one facet of ISO45001 compliance. To prevent catastrophic free-fall in the event of mechanical fatigue—which could destroy millions of dollars in precision machinery or logistics vehicles—ABX integrates redundant safety mechanisms into every heavy-duty door:

• Cable Break Device: If the primary lifting cable snaps, a tension-activated cam instantly bites into the galvanized steel track, locking the door in place.
• Spring Rupture Device: Should a high-cycle torsion spring fail, a mechanical pawl engages a ratchet wheel on the torsion shaft, preventing the shaft from spinning and the door from dropping.
• Bottom Edge Sensors (Optional): Pneumatic or optical sensors that instantly reverse the 380V servo motor if the door encounters an obstacle during the closing cycle.

Technical Parameter Reference: Safety & Compliance

Certified Manufacturing for Risk Mitigation

Safety cannot be retrofitted; it must be engineered at the source. ABX operates a 36,000 sqm intelligent manufacturing base, ensuring that every patented panel and safety device is produced with exact dimensional tolerances. By specifying ABX, wholesale distributors and builders transfer the mechanical liability to a CE and ISO-certified OEM manufacturer.

Secure Your Project’s Compliance

Do not expose your enterprise clients to occupational hazards. Contact the ABX engineering team today. Request our comprehensive safety compliance documentation (including Patent ZL201220623912.0 certificates), technical data sheets (TDS), and a wholesale quote for your next commercial project.
